The best just got better

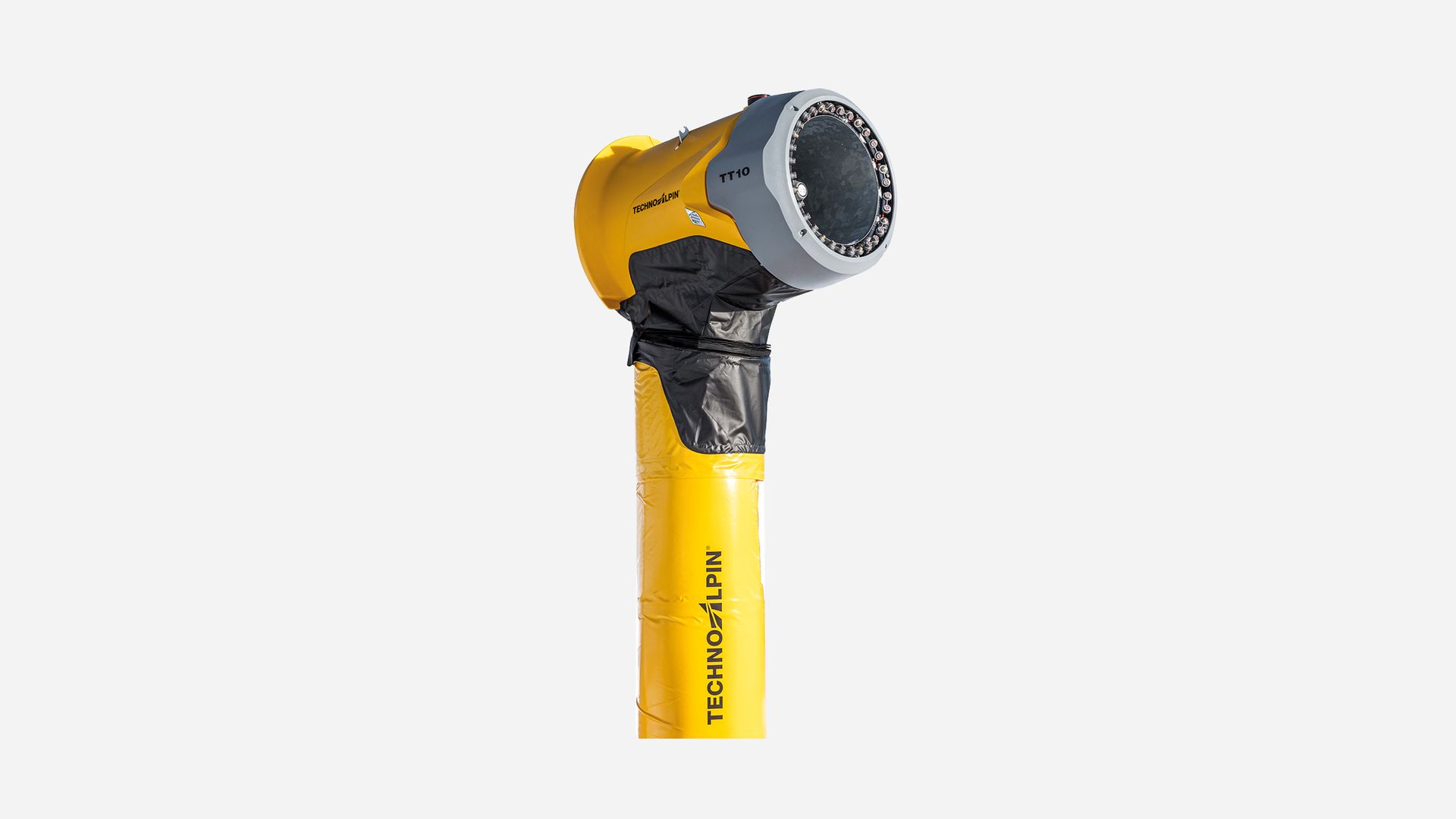

TT10: Tower power

The TR10 fan gun has literally been taken to a new level with the TT10. It combines the guarantee of the best snow quality, optimum use of resources and maximum user-friendliness with unique technology and unprecedented simplicity. The new tiltable tower combines the advantages of a tower-mounted snow gun with the maintainability of a mobile fan gun.

Easy maintenance

Endless options

Innovative technology

Easy maintenance

The new tower can simply be tilted for quick and uncomplicated access to the nozzle ring and motor — all without a ladder. Servicing has never been easier!

Endless options

The TT10 is fully customizable, with options like the touch display, the meteo station, a motorized swivel function, and much more.

Innovative technology

Only state-of-the-art technology features in the TR10 and the TT10. Top-quality snow, optimal use of resources, and supreme usability are guaranteed.

Performance at the highest level

Just like the TR10, the TT10 also stands out for the same superior features: The nozzle valve technology enables optimum energy efficiency alongside resource conservation. The air cooling system ensures unsurpassed snow output, especially at border temperatures, while the nucleators with double ruby inserts guarantee the best snow quality for years to come. The TT10 can be fully customized to limit the cost of unused features and ensure perfect performance under any condition.

Maintenance

Technical components

Technical data

Brochure

Photos & videos

Maintenance

Tiltable tower

The innovative new tiltable tower turns the TT10 into a snow gun which combines the advantages of a tower-mounted machine with the maintainability of a mobile fan gun. The tower can simply be tilted to allow access to the nozzle ring and motor. The need for a ladder is therefore completely eliminated. The elevated position of the snow producer is advantageous in allowing high snow output and a large effective radius. The steel tower is extremely strong and sturdy and consists of a fixed column and a tilting column, which enables servicing at ground level. The snow gun can be lowered with a lifting cylinder for maintenance work.

Technical components

A completely new nozzle valve system

The nozzle valve technology, completely redesigned for the TR10, is also used for the TT10. The central valve block is replaced by individually controllable single valves. Highly innovative and perfectly coordinated, each nozzle block on the nozzle ring is controlled by its own valve. More valves bring more advantages.

Resource efficiency: The loss of water on actuation of the various valves is prevented through the use of compressed air to discharge the nozzles. The excess water is integrated directly into the air jet and then converted into snow.

Operational safety: The innovative nozzle valve design completely eliminates the need for the central valve block and front discharge. This prevents the formation of ice in front of the machine and greatly increases operational safety.

Technical reliability: Thanks to the intelligent valve circuit, the valves can replace each other in the event of a failure, ensuring that the required number of nozzles is always open.

The best snow output in borderline conditions

Air cooling on the machine is key to improving snowmaking performance in borderline conditions. The newly designed air cooler has an unprecedented cooling capacity due to the significant increase in the amount of cooling surface, therefore enabling the production of perfect quality snow even in difficult temperature conditions. The TT10 is particularly impressive at limit temperatures, achieving unsurpassed levels of snow output.

Snow of gemstone quality

Perfect snow quality starts with the smallest parts of a snow producer. The optimum air and water mixture is the decisive factor. All the nucleators on the TT10 are fitted with two ruby inserts as standard, seated in the hole through which the correct amount of water is allowed into the compressed air. These ruby inserts boast maximum wear resistance, even in the presence of aggressive water and high operating pressures. They enable the constant production of high-quality snow over many years and significantly reduce the need to replace nucleators.

One motor for improved output

The fan and compressor on the TT10 are driven by just one electric motor. The rotary vane compressor is oil-free, delivers a more uniform compressed air flow, weighs less and is easier to service.

Integrated design

LED work lights and LED warning lights, together with the optional meteo station, are integrated into the turbine housing. This design gives the TT10 its streamlined look and also maximizes maintainability. There are no protruding parts, greatly reducing the problem of snow deposits.

Technical data

ELECTRICAL PROPERTIES

Nominal voltage	400 V
Nominal frequency	50 Hz
Nominal current	41* A
Connecting plug	5x63 A
Nominal power - POWER UNIT (turbine+compressor)	22 kW
Heating	1.3 kW

WEIGHTS

Snow gun - centralized air	790 kg
Transport foot - tiltable column	35 kg
Transport foot - fixed column	10 kg

VARIOUS

Operating temperature	-25 ÷ +2 °C
(Rotational) speed	1500 rpm
Turbine inclination	45°
Horizontal rotation	320°
Swinging (automatic)	320°

WATER

Operating water pressure	8 - 40 bar
Water filter	250 microns
Water-screw connection	2"

COMPRESSED AIR

Operating air pressure — absolute	6 bar
Air consumption at 6 bar absolute (DIN 1343)	470 l/min

NOZZLE CONFIGURATION

Nucleator	8
Fixed nozzles - Quadrijet type	8
Switchable nozzles - Quadrijet type	16

NB: Subject to technical modifications.

Data are subject to change depending on the type of plant and/or the country of installation (please always refer to the wiring diagrams).

*Measurements at nominal voltage at 1500 m above sea level and at a temperature of 0°C.
